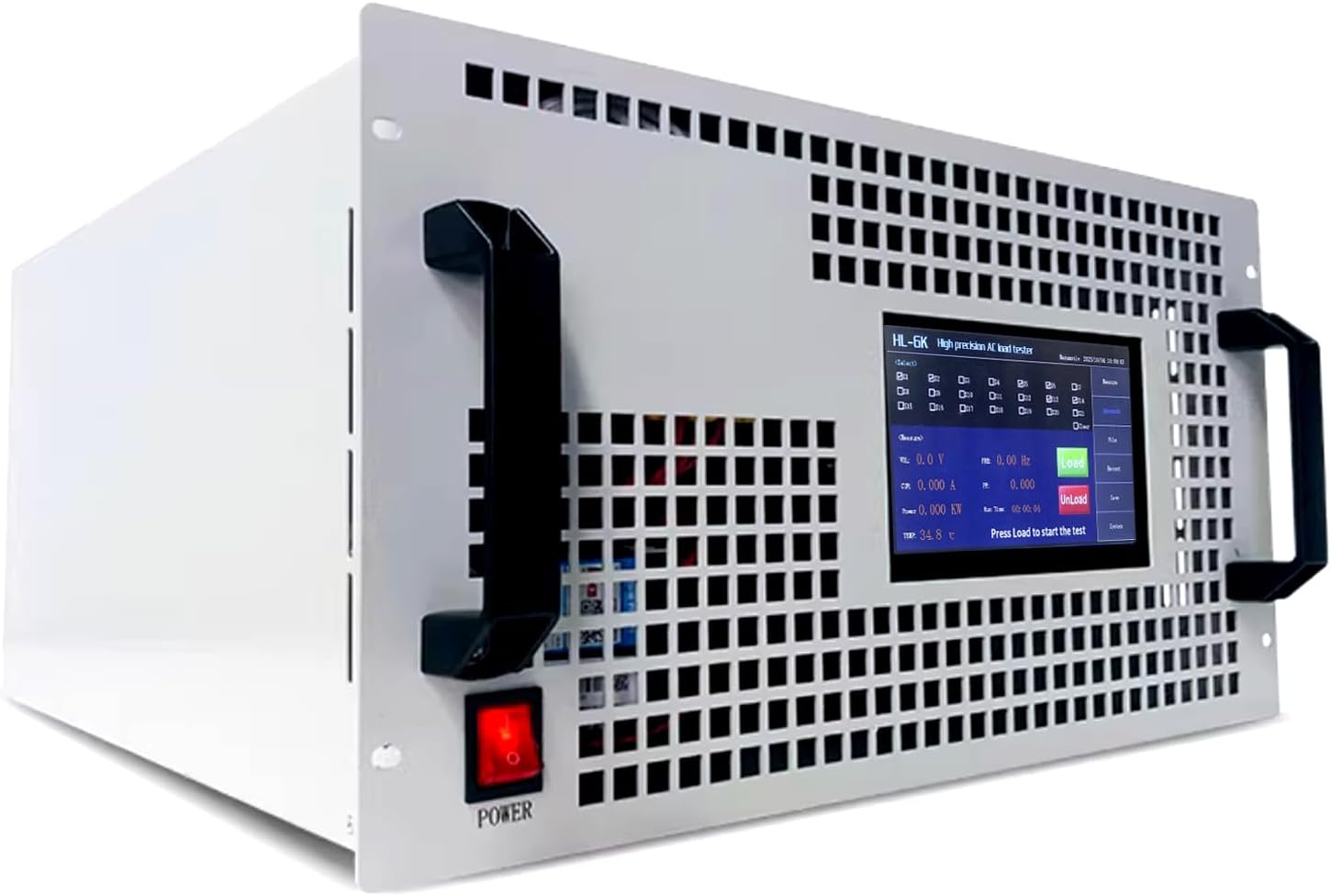

6000W Programmable AC Electronic Load, High-Precision with RS232 Communication, 110V/220V 50Hz/60Hz for Inverter UPS Generator Power Testing

The [Brand Name] 6000W High-Precision Programmable AC Load Bank is the ultimate tool for engineers and technicians requiring accurate and reliable testing for AC power sources. Whether you are developing inverters, maintaining UPS systems, or validating generator performance, this regenerative electronic load delivers the precision and power you need. Advanced Programmable Load for Demanding Applications: This AC load bank is designed to simulate real-world conditions with high accuracy. It features a wide input voltage range from 80V to 240V AC, accommodating both 110V and 220V systems at 50Hz or 60Hz. With a powerful 6000W rated capacity and a maximum current of 54A, it's suitable for a wide range of high-power components. The high setting accuracy (Power: 20W, Current: 0.09A) allows for fine-tuned testing procedures. Parameters: Power Supply Input Voltage: AC220V±10%, 50Hz/60Hz ( For 110V power grid, 110V to 220V voltage transformer is provided) Rated Power: 100W Communication: RS-232, Baud Rate 9600 Load Function Input Voltage: AC80~240V; Rated AC110V/AC220V Input Frequency: 50Hz/60Hz Rated Power: 6000W Rated Current: 54A@105~135V, 27A@215~240V Power Setting Accuracy: 20W Current Setting Accuracy: 0.09A Load Return Actual Accuracy: -3%+1.5% or ±20W Resistance Setting Range & Accuracy: 2~600Ω@110V, 7~2400Ω@220V ±5% Power Factor: PF=1.0 Cooling Method: Forced Air Cooling Other Functions: Unloading / Short Circuit Measurement & Error Voltage: ± (0.1% of reading + 0.2% of range) Current: ± (0.1% of reading + 0.1% of range) Active Power: ± (0.1% of reading + 0.1% of range) Frequency: ±0.1% Power Factor: ±0.02 Protection Overvoltage Protection Overpower Protection Overtemperature Protection Operating Environment Temperature: 0~60℃ Humidity: ≤85% RH Atmospheric Pressure: 86~106kPa (Altitude up to 4000m) Dimensions Size: 18.97 in × 10.0 in × 23.70 in (481.8mm * 254mm * 602mm) Weight Net Weight: Approx. 22Kg

• 【High-Precision & Versatile Testing】 This programmable AC load bank offers exceptional accuracy for rigorous testing. It features Power setting accuracy of 20W, Current setting accuracy of 0.09A, and Resistance setting range of 2-600Ω @110V / 7-2400Ω @220V with ±5% accuracy. Ideal for engineers needing precise data on inverters, UPS systems, and generators
• 【Wide Input Range & High Power】 Designed for demanding applications, this electronic load operates with an input voltage of AC80~240V and supports both 50Hz/60Hz frequencies. With a substantial rated power of 6000W and a rated current of 54A@105~135V / 27A@215~240V, it can handle a wide variety of high-power testing scenarios
• 【Comprehensive Measurement & Protection】 Monitor your tests with high-precision measurement. It provides voltage, current, and active power readings with an accuracy of ±(0.1% of reading + range percentage). Built-in safety features include over-voltage, over-power, and over-temperature protection, ensuring safe and reliable operation in labs and workshops
• 【User-Friendly & Smart Design】 Featuring a clear 7-inch capacitive touch screen with four-digit high-precision display, it's easy to set parameters and monitor results. The intelligent temperature-controlled fan ensures efficient forced air cooling, while the automatic compensation function maintains test accuracy. It also includes practical functions like unloading and short circuit testing
• 【Remote Control & Robust Build】 Easily integrate the load into your automated test system via the built-in RS-232 communication interface. Housed in a durable chassis (481.8mm254mm602mm, net weight approx. 22Kg), this unit is built for long-lasting performance in environments from 0~60℃
